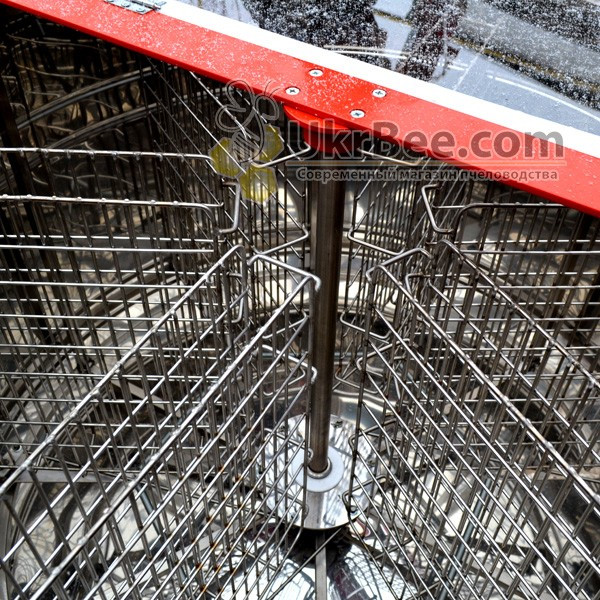

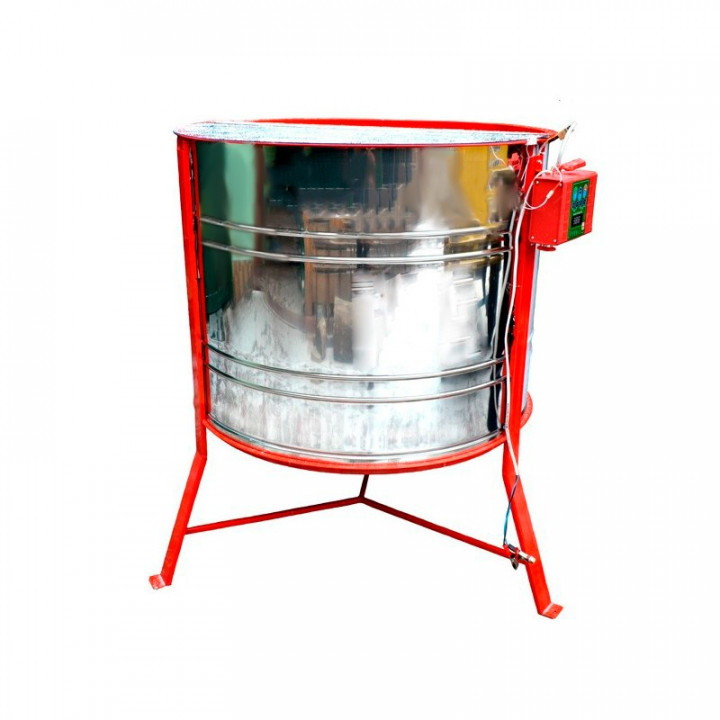

Automatic 6-frame honey extractor for "Dadant" frames. Reversible cages. Stainless steel (tank, rotor) with lid

Automatic 6-frame honey extractor for "Dadant" frames. Reversible cages. Stainless steel (tank, rotor) with lid.

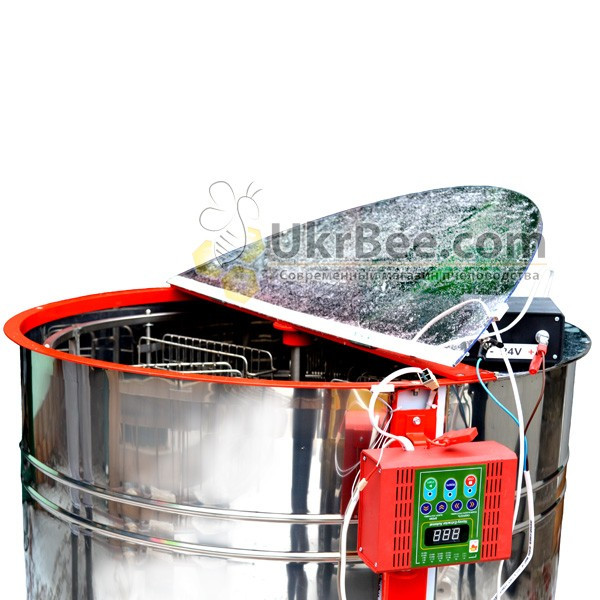

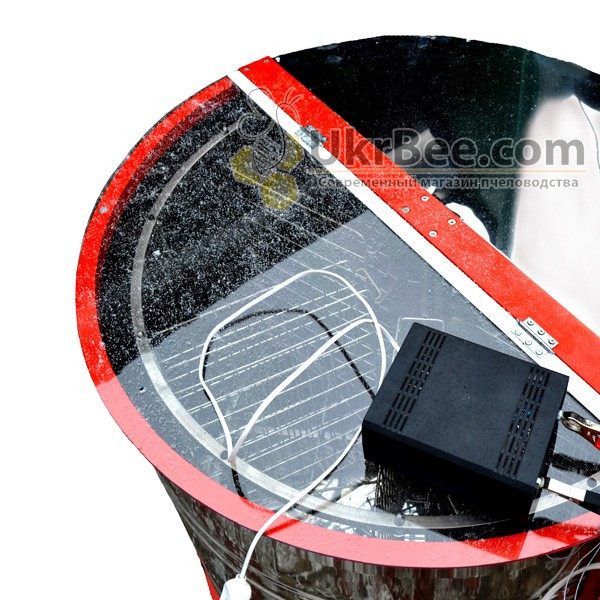

For stable continuous operation, the honey extractor requires a 24 V power supply. The honey extractor can be connected to a 200 V mains supply via a special current converter, which will provide 24 V at the output. You can use 2 car batteries connected in series. The batteries are sufficient for a full day of work. The motor in the honey extractor has a power rating of 300 W. The honey extractor has both a manual mode and automatic operating modes.

List of modes and their description

Manual mode: the permitted speed range in manual mode is 50-60 rpm. The operating time for this mode is 1-5 minutes.

As the viscosity of honey can vary, the number of revolutions should be set starting from medium values

Until the honey extractor has come to a complete stop, it is not permitted to change the direction of rotation of the rotor, as this may overload the geared motor and cause it to fail.

Automatic modes

First programme:

• Forward rotation - 80 rpm. Operating time 1.5 minutes.
• Reverse rotation - 110 rpm. Operating time 1.5 minutes.
• Forward rotation - 110 rpm. Operating time 1.5 minutes.

Second programme:

• Forward rotation - 110 rpm. Operating time 2 minutes.
• Reverse rotation - 110 rpm. Operating time 2 minutes.

Third programme:

• Forward rotation - 130 rpm. Operating time 2.5 minutes.
• Reverse rotation - 130 rpm. Operating time 2.5 minutes.

Specifications:

• Tank: diameter: 900 mm;
• Honey extractor height: 1240 mm;
• Width with legs: 1150 mm;
• Honey extractor weight: 65 kg;
• Usable honey capacity: 50 l.
