Apiary Frame Drilling Machine (5 Drill Bits) images

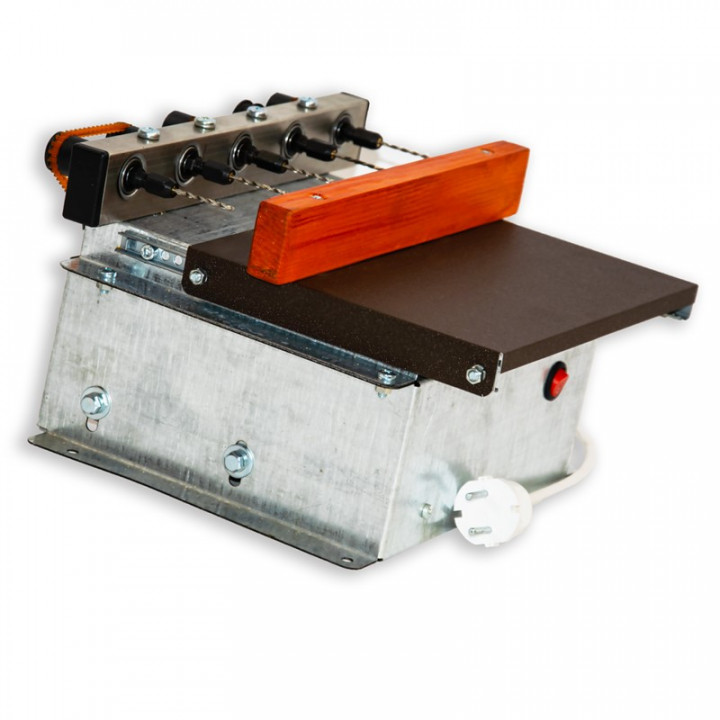

Apiary drilling machine for drilling 5 holes in the side bars of hive frames. The machine has 5 collet chucks and drills all the holes in one pass.

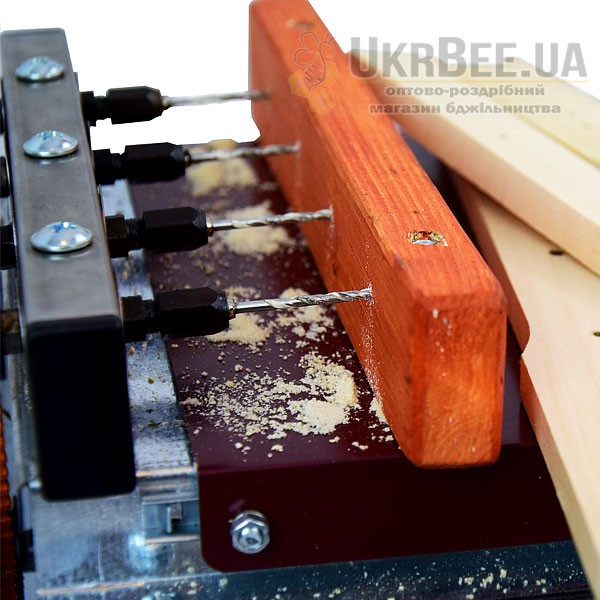

The machine is used for drilling holes in the side bars of hive frames. It allows you to drill 5 holes in a side bar in one operation. Speed and accuracy are the main advantages of this machine. Holes drilled with the machine are positioned exactly on the same plane, making it possible to fit sheets of beeswax foundation evenly and obtain straight combs.
A feed carriage with ball-bearing guides for feeding the workpiece to the drilling mechanism;

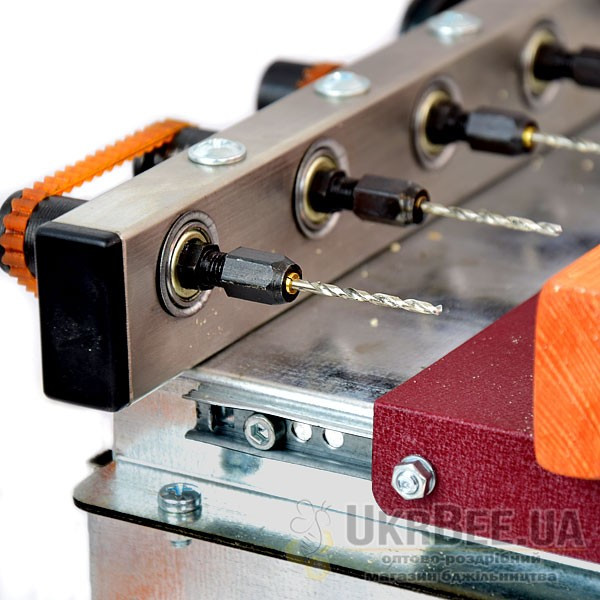

a 5-head drilling mechanism with collet chucks on bearings;

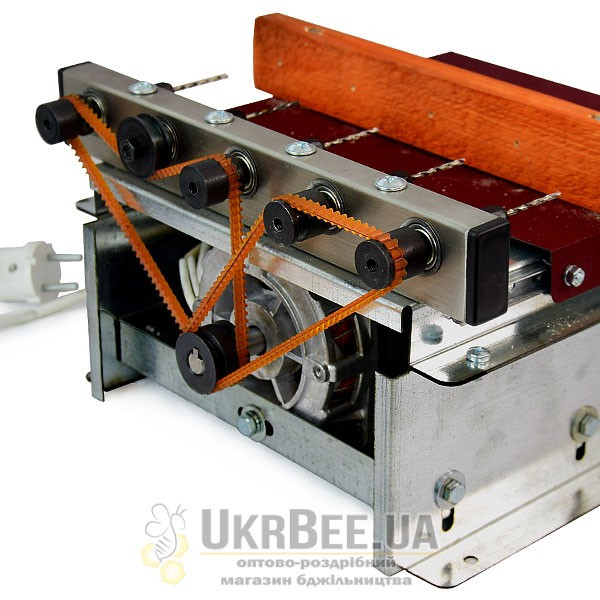

a powerful 145W single-phase motor powered from a 220V household mains supply with belt drive;
Please note: at the top of the site when ordering (before purchasing), you need to select the required machine model (frame size, number of holes, etc.).
Technical specifications:
Product weight: 6.5 kg;
Motor: single-phase, 220V, 145W, 1370 rpm;
Overall product dimensions: 180x220x270 mm;
Tools used: 2.5 mm drill bit (4 pcs).
The five-drill machine allows you to drill 230 mm frames, making 4 wire holes, and 300 mm frames, making 5 wire holes.
Manufacturer: Beekeeping Production and Innovation Cooperative “PAVIK”, Ukraine.
