Grafting Frame (Dadant)

Grafting Frame (Dadant)

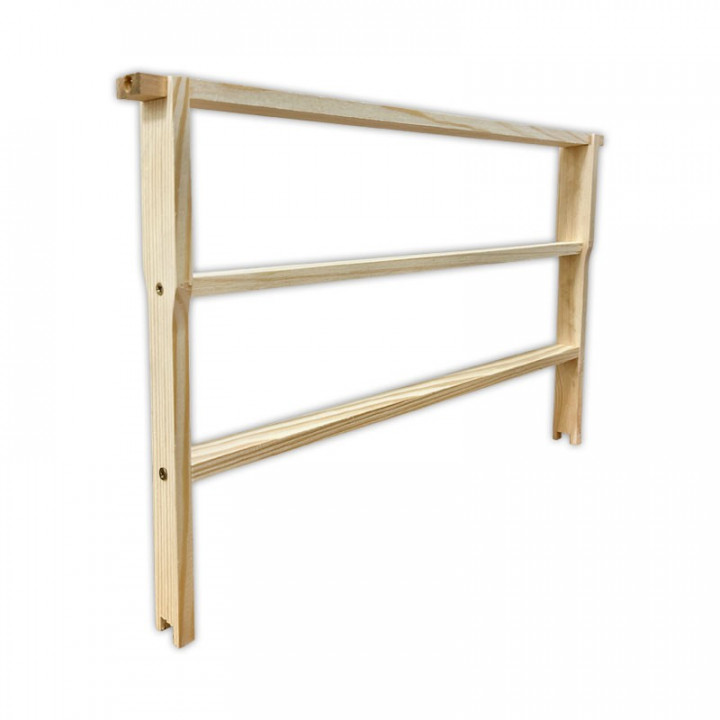

This grafting frame is made from pine wood for artificial queen bee rearing and matches the dimensions of a standard Dadant frame.

It is fitted with two wooden bars, each of which can hold 15 Nicot system bases for queen bee rearing. The rotating bars make it easier to position protective hair roller cages with holders and cell cups.

After assembly, the frame is placed in a cell builder colony for further use.

Dimensions:

• Top bar: length 470 mm, width 25 mm, thickness 15 mm.
• Bottom bar: length 435 mm, width 18 mm, thickness 10 mm.
• Side bars: length 300 mm, width 34 mm (with Hoffman spacing), thickness 10 mm.

Country of manufacture: Ukraine
